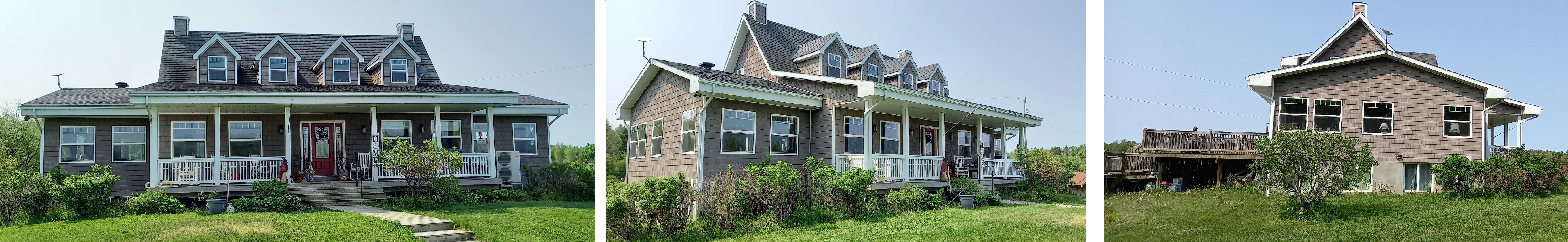

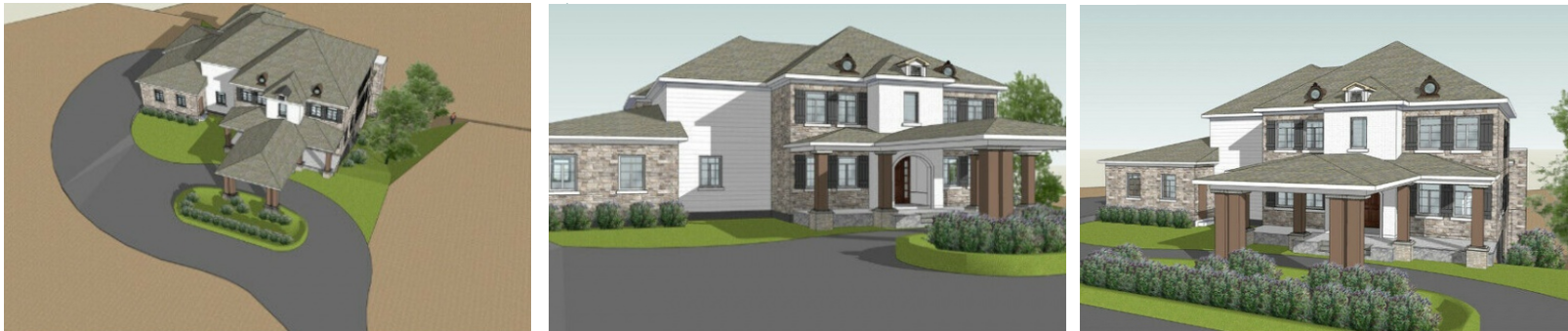

Custom Homes & Cottages

I pride myself as a creative individual who puts every effort into mapping out even the smallest details for your dream home or cottage. With this option, you are getting everything you ask for from the ground up with custom-built kitchens, basements, living rooms, bedrooms, bathrooms, and any other spaces you may want included in your home. The sky's the limit with this one.

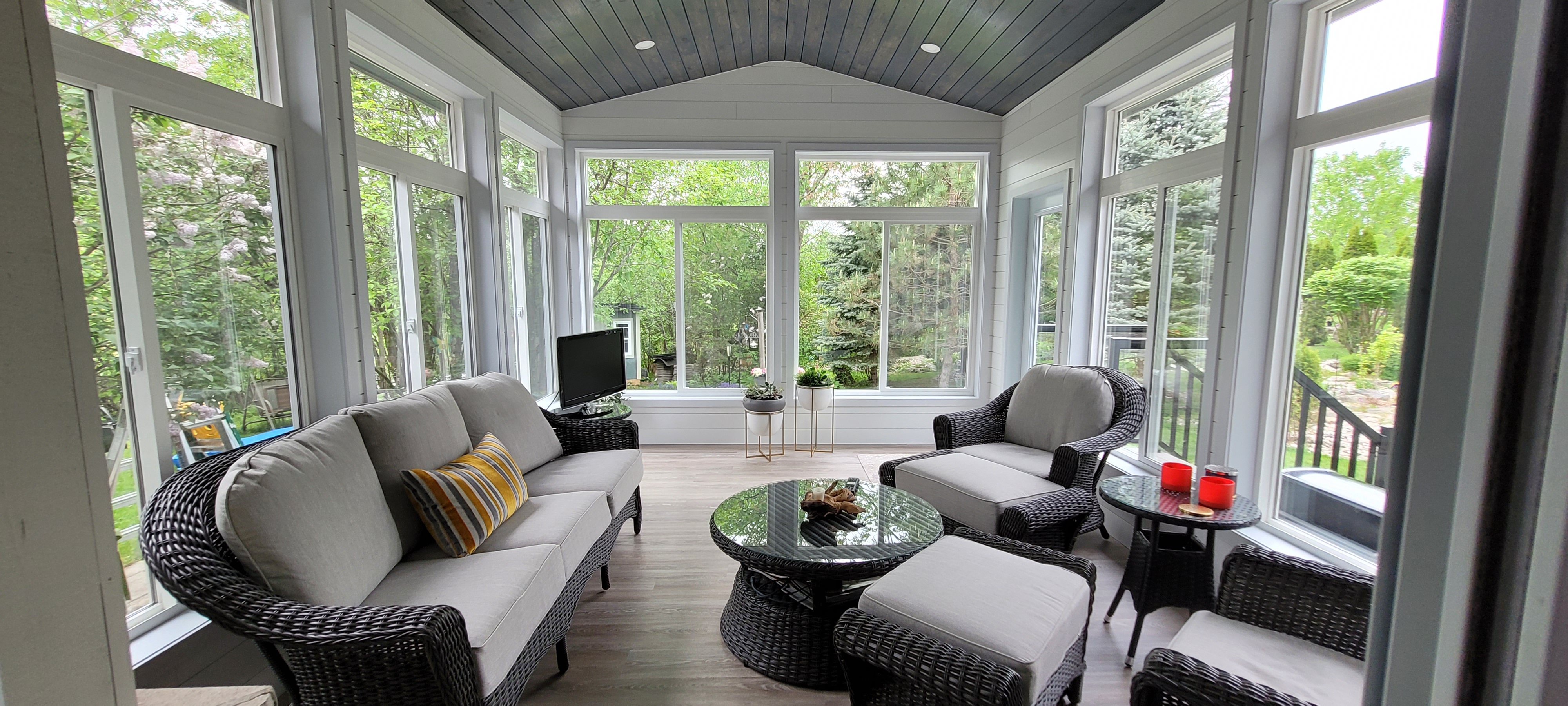

Interior view Sunroom, 646 Bayview Drive, Constance Bay, Ontario.

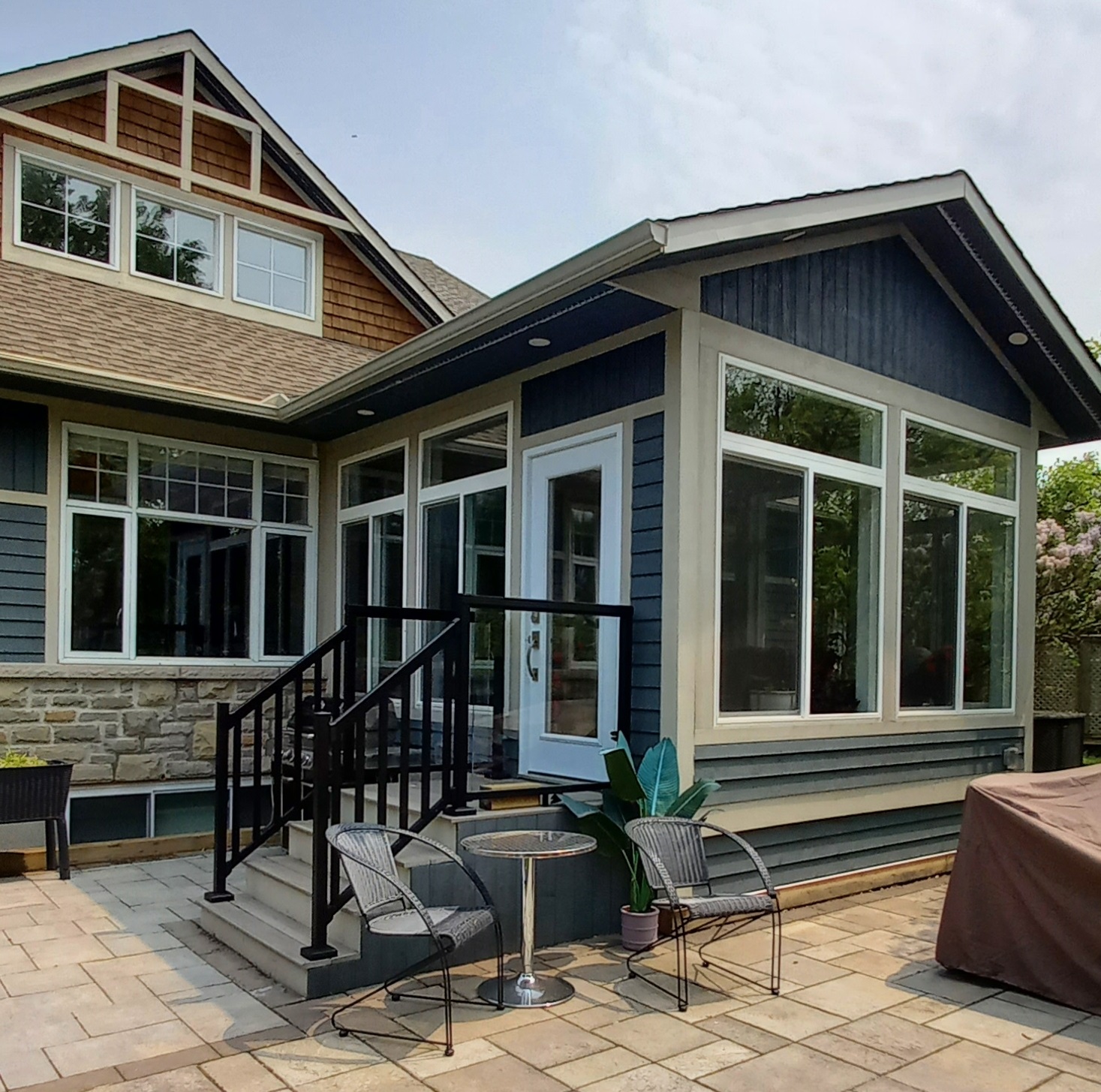

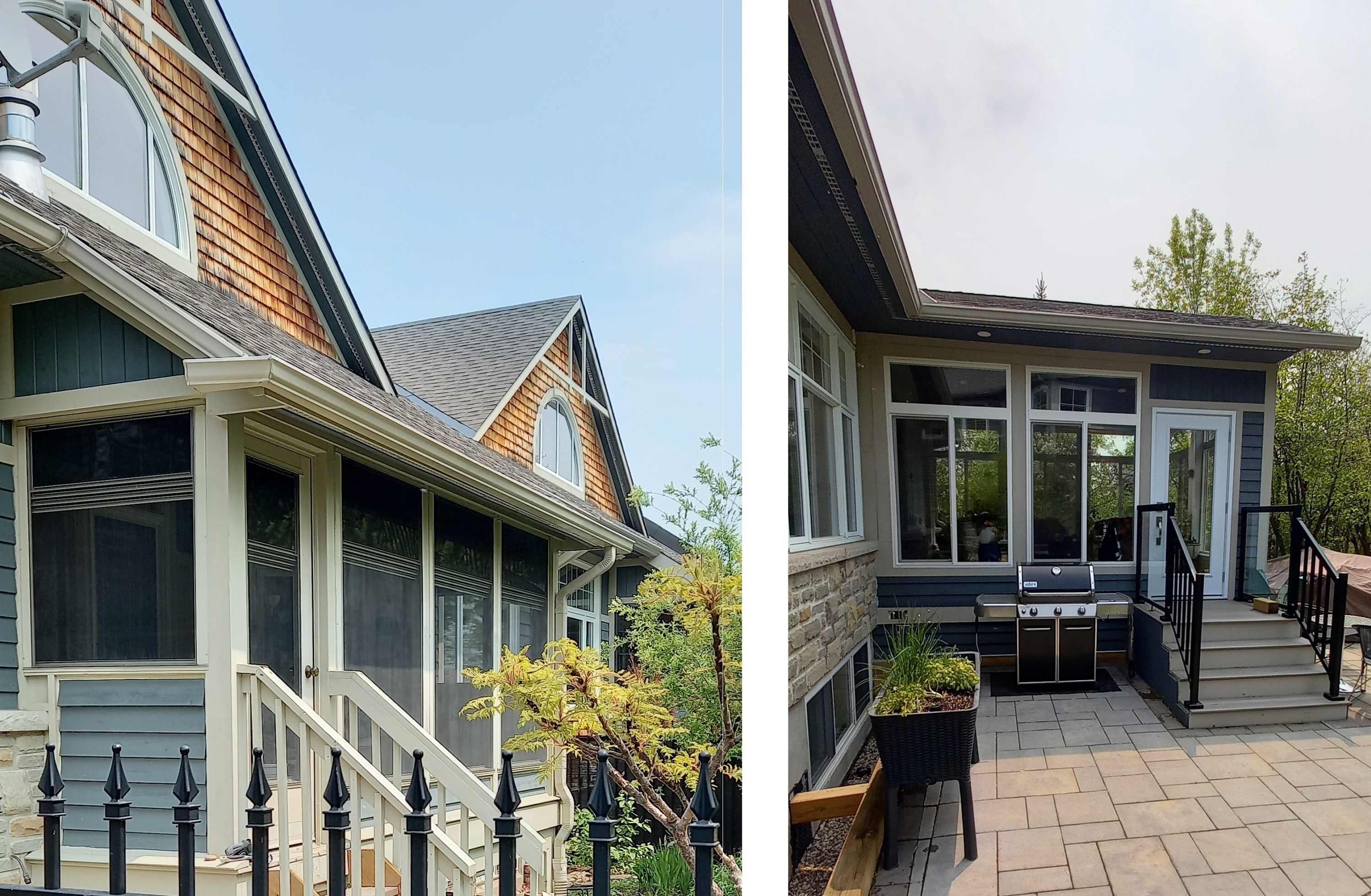

Sunrooms

Give your home the elegant upgrade it needs with a sunroom, structures that allow abundance of daylight into their interior while sheltering from any adverse weather conditions. Give me the opportunity to build that sunroom you’ve got in mind, or perhaps let me conjure up a design of my own that'll surely leave you satisfied with your new living space. You also get your daily dose of vitamin D.

Design of a new Carport, Pleasant Park, Ottawa

Garages/Carport Additions

I’ll come up with the proper planning for your garage or carport addition(s). I’ll work with you to make sure we look at all the options and come up with something that fits your needs and wants. Whichever upgrades you're thinking of or looking at, I assure you I can do them

Screenshot-2023-01-11-at-17-14-29-Services-–-Lalit-Verma-Designs-Construction - Copy (4)

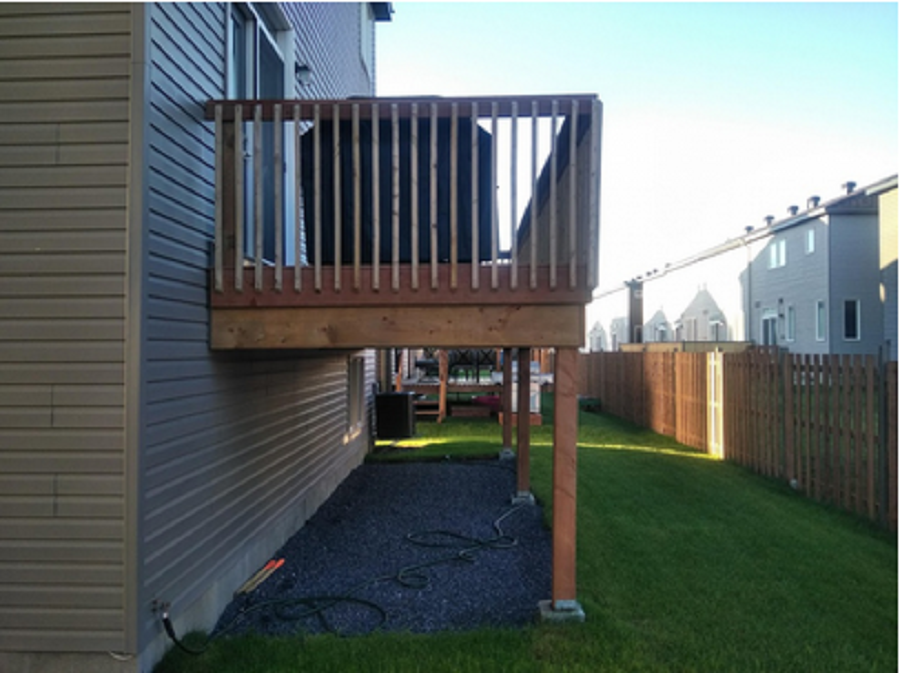

Decks

Decks are wonderful additions to your backyard. It's your opportunity to make your backyard something special and unique with a well-designed and well-executed structure. Decks are elevated floors built outdoors and connected to your own home. They give you a large spatial area to place plants, tables, chairs and just about any other decorations or pieces of furniture you may want outdoors. I promise you; your backyard will become a beautiful thing.

Exterior Renovations/Refurbishment

Your home may be needing an aesthetic upgrade of a sort. Maybe you have something in mind, or you don’t and are looking for suggestions. Don’t worry, I'll deliver on your needs while constructing the proper plans and using the most effective and efficient materials to maintain your home’s protection from elements that may cause it to structurally decay. As I've said before I’ll work with you every step of the way to provide you with something that'll leave you smiling and loving your home THAT much more.

As-Built Drawing Package

I also provide complete As-Built drawing services for your existing property, be it residential or commercial. These drawings provide you detailed information about your own property in terms of floor layouts with accurate area calculations, existing all electro-mechanical services equipment etc., and building sections showing structural components and existing structures. Some other things to note are exterior elevations showing heights, window design, and roof lines. This information can enable you to plan future renovations or extensions to the existing floor space for additional habitable space.

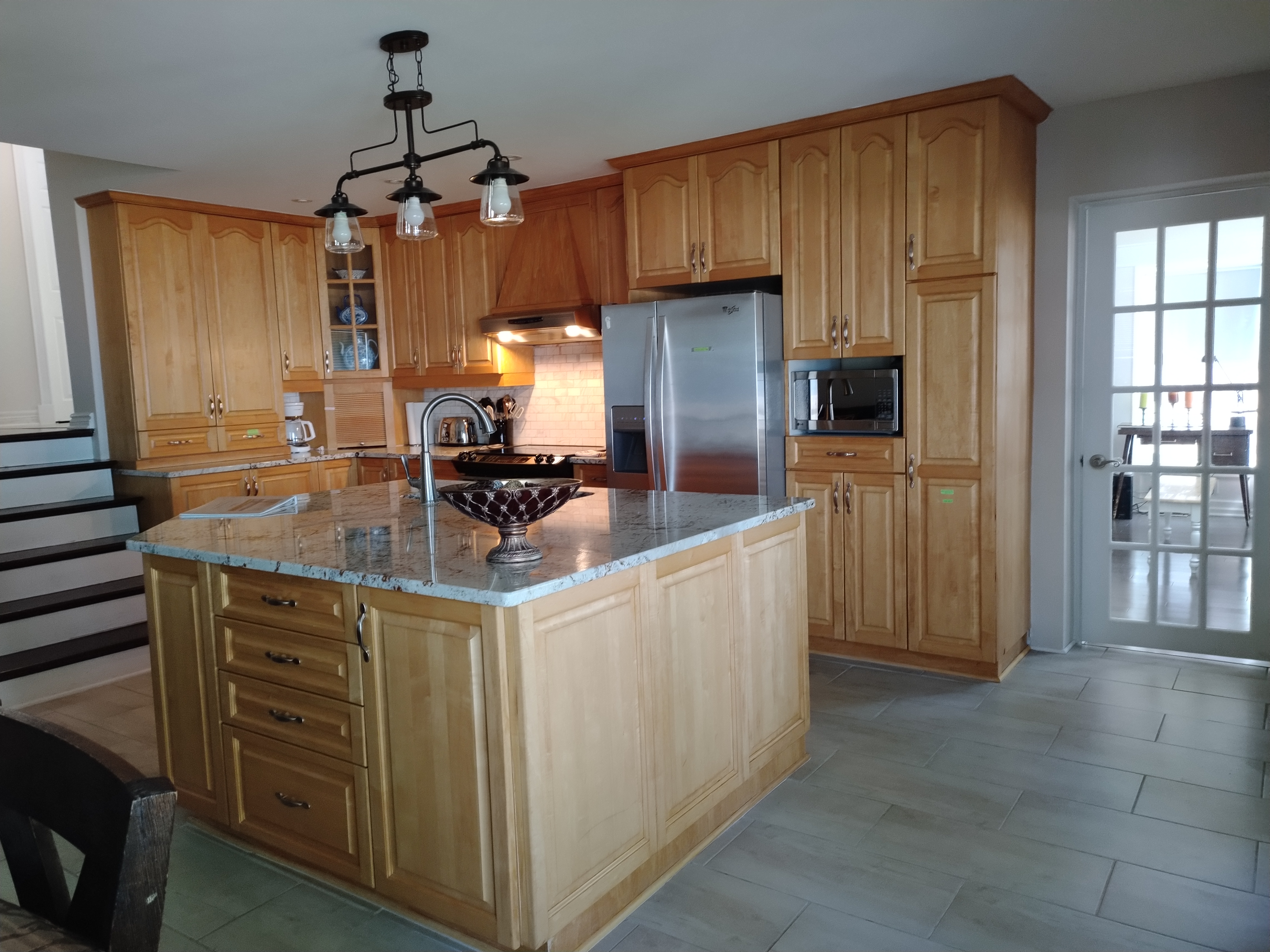

Kitchen/Kitchenettes & Bath Design

Kitchens and bathrooms can be more than just facilities for particular purposes, give them that touch of innovation and inspiration that really brings them to life, and consequently your whole house too. My kitchen and bath design service promises to deliver just that and no less. Throughout the process, your inputs and my expertise will come together to develop a kitchen; bathroom that you'll enjoy for years to come, I assure you that.

Screenshot-2023-01-11-at-17-14-29-Services-–-Lalit-Verma-Designs-Construction

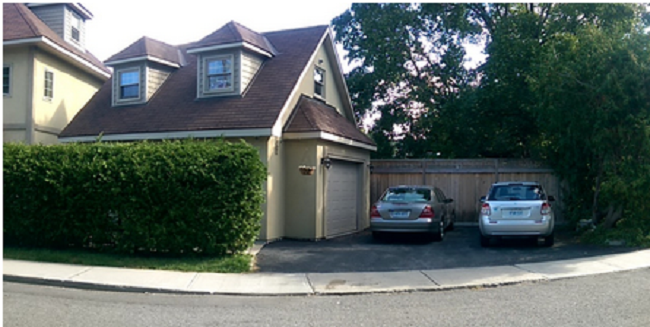

Coach House

Ottawa Home Owners are allowed to build Coach House in their yard with the following restrictions

IF BUILT IN THE CITY:
It is a one storey with an area that can not be any greater than 40 per cent the size of the main house, 40 percent the size of the yard, or 80 square metres, whichever is smallest.

IF BUILT OUTSIDE THE CITY:
It can be two storeys (above a garage) and can be no greater than 40 per cent the size of the main House, 40 percent the size of the yard, or 95 Square Metres, whichever is smallest.

Rooftop patios are not allowed. Water and sewer services would have to come from the Main House to prohibit the Coach Houses from being severed from the Main Property. A Home could have an Apartment within, or a Coach House in the yard, but not both

Residential Design, Addition / Alterations & Light Commercial Design

1 offer design & drafting services for all residential / commercial facilities. | develop your ideas and requirements into functional drawings for projects up
6,000.00. ft. in area from a new custom home design to a single room extension on your existing residence. | have always believed that the best
solutions are often the simple ones. A typical project would consist of the following stages

Initial Consultation

Phone Consultation

The initial consultation will start with a simple phone call. We will proceed to the next step after this

I offer a complimentary and no obligation phone consultation to confirm a few details and understand your needs so that | can prepare for a meeting or

site consultation. | will share my design process with you and will have an opportunity to ask general questions about your project.

Site Consultation

The step is to meet on your site to understand your needs & wants . We will proceed to the next step after this

Listen to your desires and goals and provide feedback on lot characteristics and other benefits. Show you how many crucial custom home design decisions are strongly influenced by the topography of the build site.

Schematic Design

Now, with a strong understanding of your needs and wants we analyze your technical requirements.

At the end of this phase, you will be well on your way to your custom dream Home or Cottage design with:Preliminary Site Plan showing footprint of the Building with setbacks Floor Plans showing size and location of rooms Exterior Elevation drawing(s) Building Sections showing key elements Preliminary cost estimates for construction

Design Development

At this stage your design development is formalized and all the schematics necessary are created

The sketches become formal Plans and Elevations including finishes and important details and additional renderings. Engineering teams join in the process and provide drawings to define the structural, electrical, and mechanical components of your Home or Renovation Project.

Permit Drawings

Screenshot-2023-01-11-at-17-16-05-Gallery-–-Lalit-Verma-Designs-Construction-1-1-3-1024x203

Quick Note

The Ontario Building Code Act requires homeowners to obtain a building permit prior to construction to ensure construction meets the Building Code standards and other municipal requirements including zoning. By applying for a building permit, you ensure that your project meets minimum structural, fire, and health and safety building standards as legislated by the Province of Ontario.

Permit Drawings are used for the following:

Building Permit Application
Project cost estimate by Building Contractor
Building Renovation or Construction

Site Plan

Zoning information
Site grading Plan
Lot size showing footprint of Building with setbacks from lot lines

Foundation Plan

Layout of Foundation design showing footing size, Columns and related structural members
Drainage design

Basement Plan

Layout of rooms and dimensions
Location of Doors and Windows and Egress windows
Mechanical room showing Furnace and other related equipment
Structural design of floor above

Ground Floor Plan

Layout of rooms and dimensions
Location of Doors and Windows and Egress windows
Structural design of floor above

2nd & / or 3rd Floor Plan

Layout of rooms and dimensions
Location of Doors and Windows
Electro-Mechanical layout
Fire separations
Structural design of floor above

Roof Plan

Roof design showing drainage and slope
Roofing material
Location of chimneys (If applicable)

Exterior Elevations

Views of all exterior elevations showing floor to floor heights

Exterior finishes

Roof line and slope

Overall height of Building from Grade

Grade profile

Building Sections

Structural design of Floors and Roof

Interior heights

Fire separations

Sections through Building Structure
